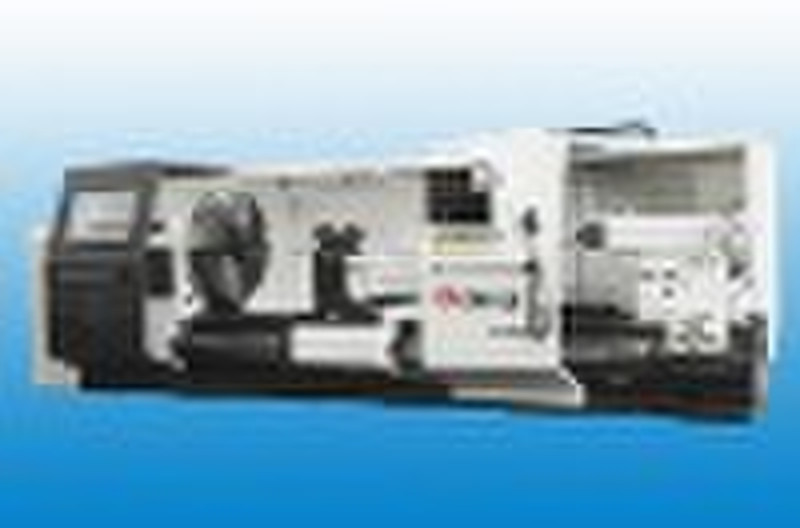

CNC Heavy duty lathe

Swing over bed1000mm Swing over carriage630mm Maximum length of workpiece1500/3000/5000(6000/8000/10000/12000/14000/16000/18000)mm Maximum turning length1230/2730/4730mm Span of guideway755mm Spindle noseA2-15 Chuck(manual)4-JAW CHUCK 1000MM Spindle bore130mm Taper hole of spindle1:20/140 Spindle speed and rangeCK series:auto 4 gear steps,stepless speed change in the step. 3.15-315r/min Center height from bed500mm Min.feed increment of X-/Z-axis0.001/0.001mm Rapid speeds of X-/Z-axis3000/6000mm/min Max.travel of x-axis520mm Tool-post working positionVertical 4-position electrical turret Indexing times2.6(V4) Indexing repeatility"0.01mm Section of tool shank40mm Diameter of tailstock quill160mm Travel of tailstock quill300mm Taper hole of tailstock quillMorse 6 Workpiece accuracyIT6-IT7 Surface roughnessRa1.6 Acceptance conditionsJB/T8324.1-96 JB/T8324.2-96 Main motor power22kw Machine mass9000/11000/13000kg Length4500/6000/8000mm Width2435mm Height2150mm
