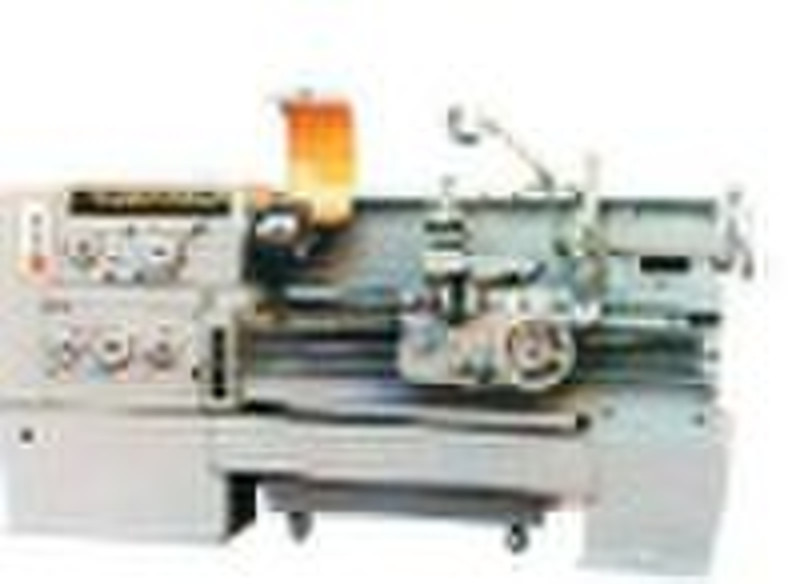

Universal Lathe

Universal Lathe Model YUCY6240 Swing over bed400mm(16") Swing over gap630mm(25") Efective width of gap240mm(10") Swing over carriage220mm(9") Maximum lenth of workpiece750、1000、1500、2000、3000mm（29"、40"、60"、80"、118"） Range of spindle speeds24steps 9-1600r.p.m Spindle tapeM6(metric) N o. (1:20) Spindle hole52mm Spindle noseC-6 Longitudinal feeds93 Kinds 0.028-6.43mm/rev Cross feeds93 Kinds 0.012-2.73mm/rev Lead screw pitch12mm Metric thread range48 Kinds 0.5-224 Inch thread range48 Kinds72-1/8T.P.I Module thread range42 Kinds0.5-112 Diametral pitch thread range45Kinds56-1/4DP Dia of tailstock quill75mm Morse taper of tailstock quillN o.5 Max travel of tailstock quill150mm (6") Main motorpower7.5kw Machine overall dimensions750=2375x1043x1275; 1000=2625x1043x1275; 1500=3125x1043x1275; 2000-3625x1043x1275 ; 3000=4625x1043x1275mm Net weight750mm=1900Kg ; 1000mm=2050Kg ; 1500mm=2250Kg ; 2000mm=2450Kg;3000mm=2650Kg
